Model: SHUIFU-AXE-OVERHEAD | Brand: Shuifu | Manufacture Country: China
Intelligent fully-automatic operating systems, 24 hours self-service card reader payment system.
Smart 360 technology for fast cleaning every corner of vehicles
Intelligent liquid dispenser for apply presoaks, tri-colors foam, shampoo, wax.
Innovative suspension system with effortless rails.
Unique embedded fast dry/blower system.
Digital voice security alarm system.
Faulty self-checking system.
Automatic collision avoidance.
One key anti-frozen system.
E-Chain Utility Routing.

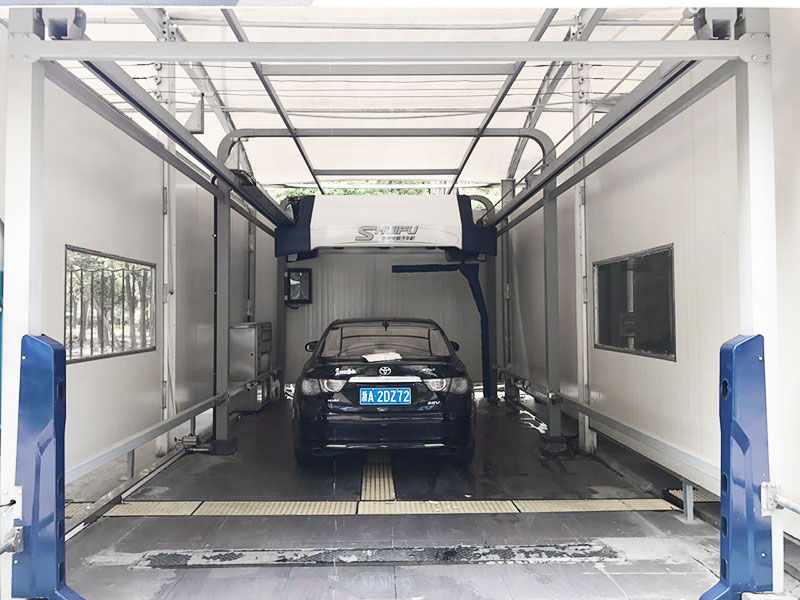

Staple Open Wash Bay – without overhead design, no floor steel for customers load car easily.
Max vehicle washing size L*W*H=6000*2500*2080mm.

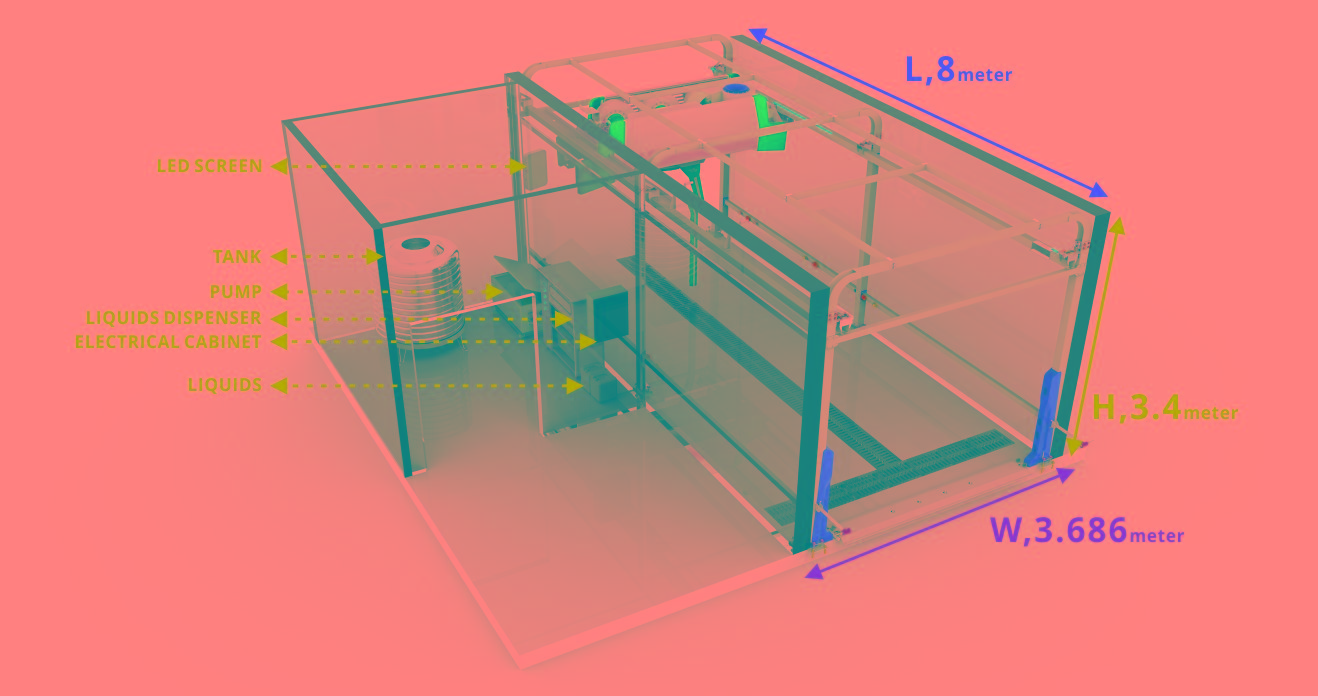

Standard Installation Size: L*W*H=8000*3686*3400mm
100Bar-1430PSI high pressure chassis(multiple-class pressure) and paint rinse.
Smart 360 rotary arm, flush paint 360°and apply various liquids.
High precision(0.1L) dispenser, only takes 20~50ml liquids consumption for each car.

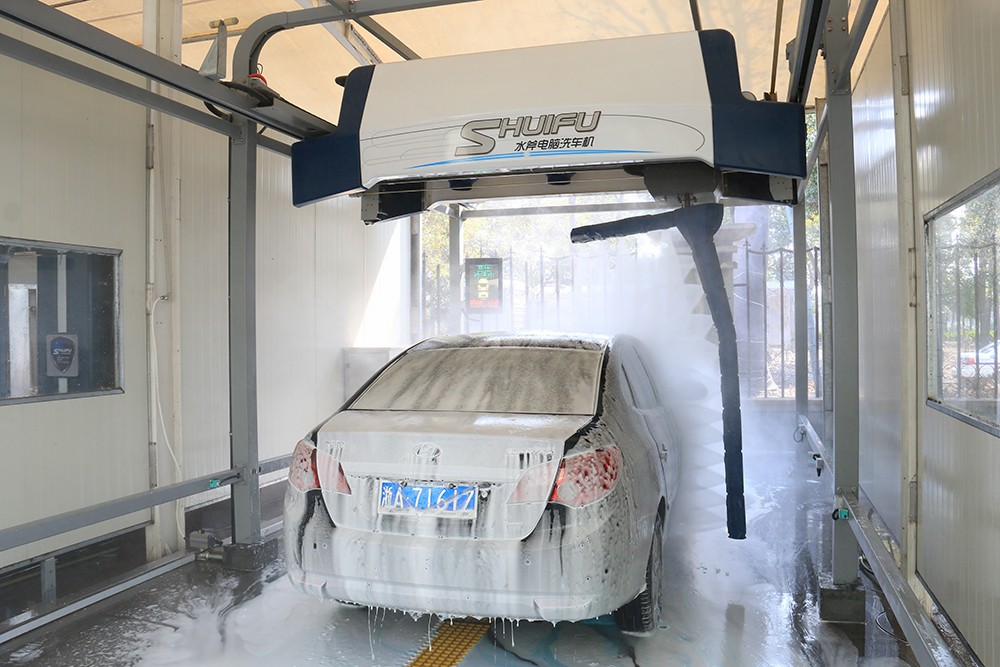

Tri-color thick foam cleans dirt thoroughly.

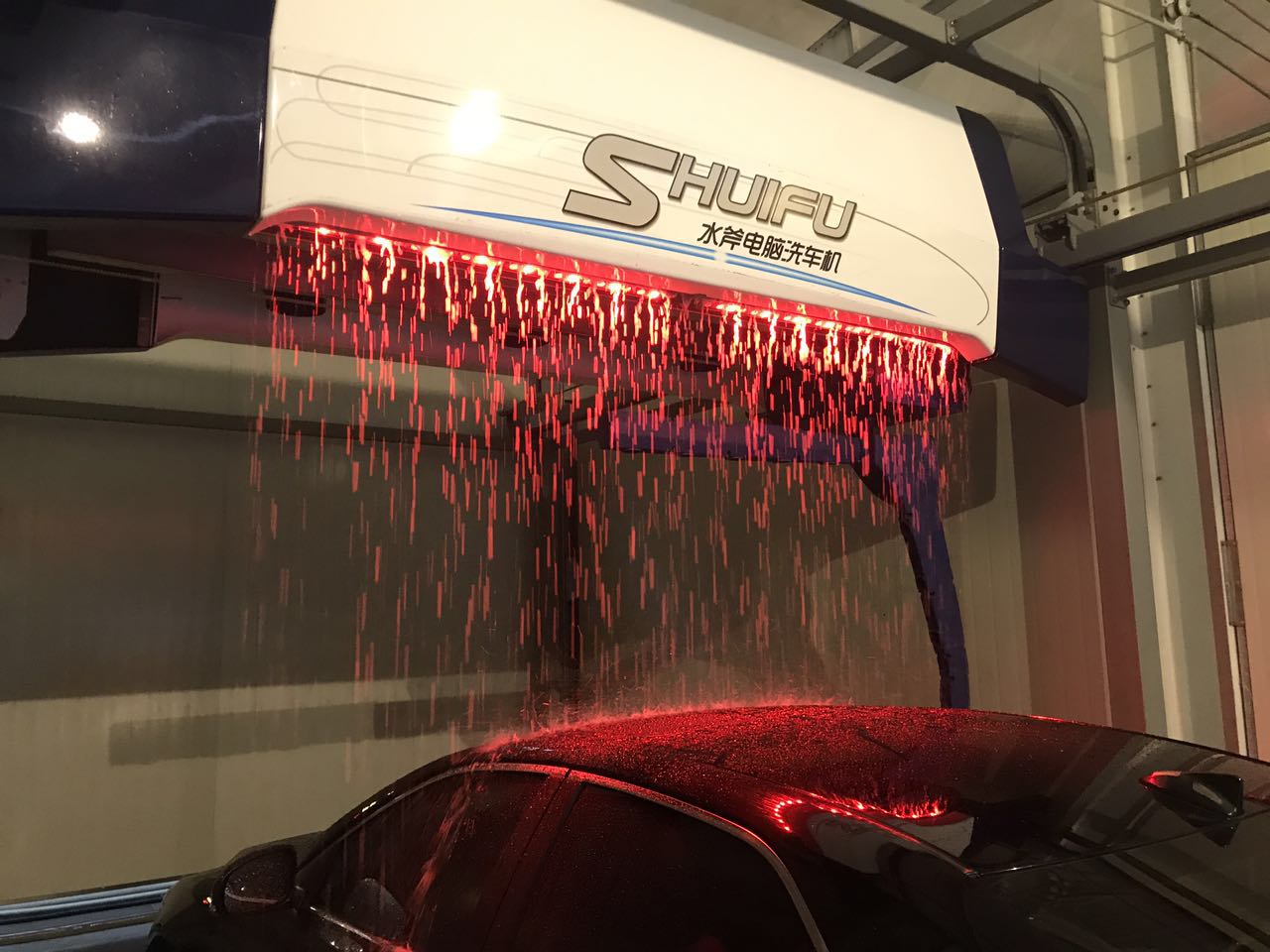

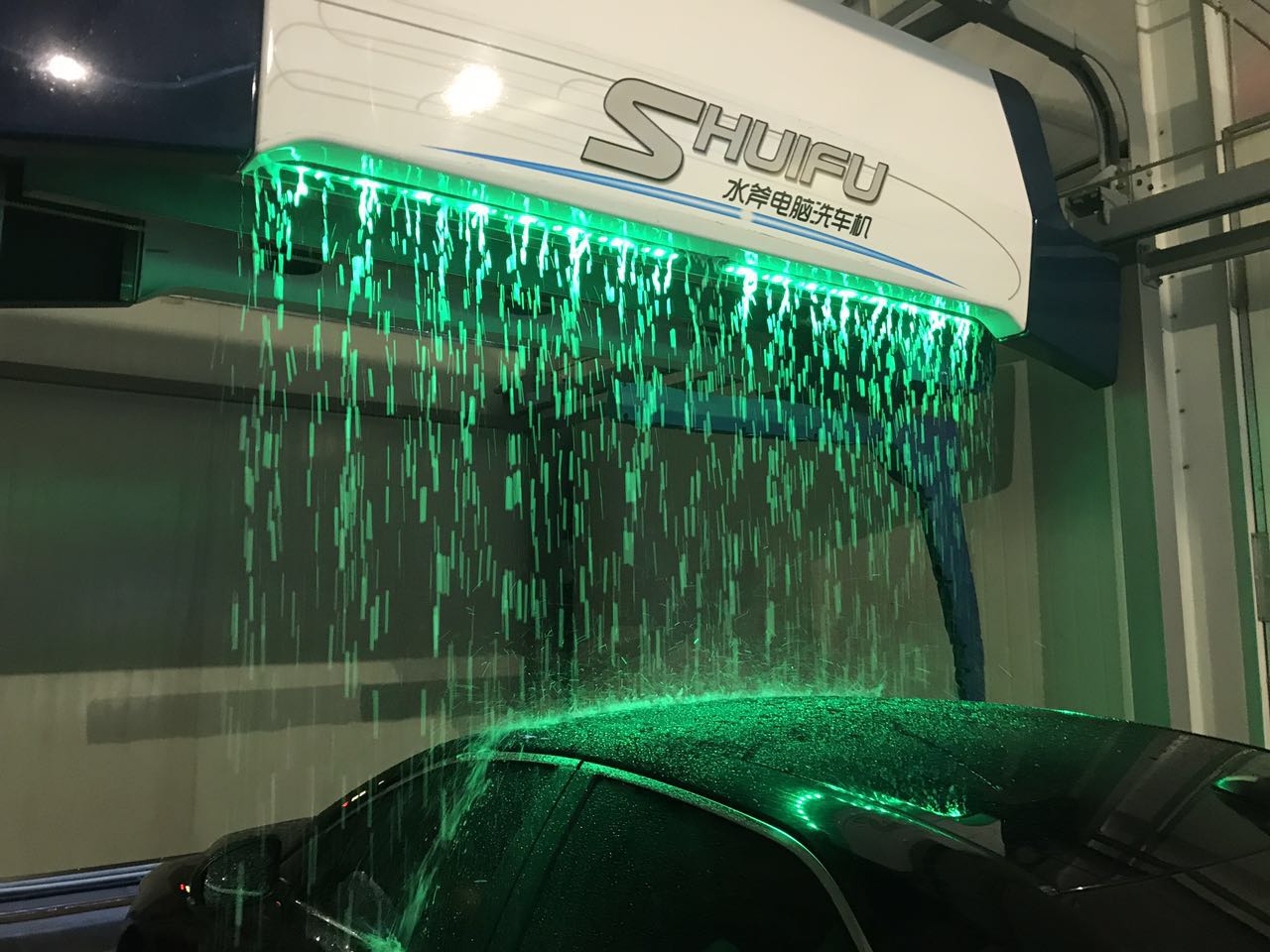

Softner water comes with crystal wax coating: Crystal wax coating can be generated on the paint surface layer polymer, the softener water fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.
AXE OVERHEAD with 4 pieces of 5.5kw motors embedded in the suspended bridge offering high-pressure airflow by four cylindrical outlets to make sure car dried.
28 seconds per circle for arm profiling a car, saving 50% water and 60% power cost.

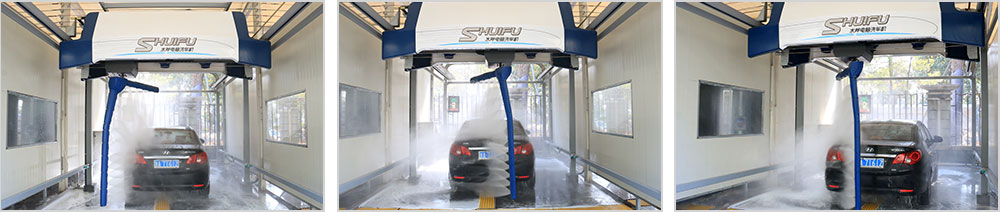

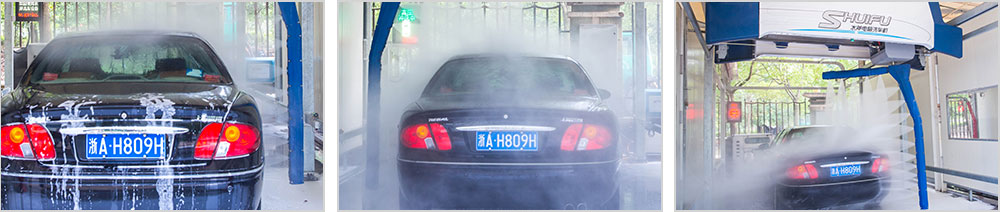

High pressure rinse

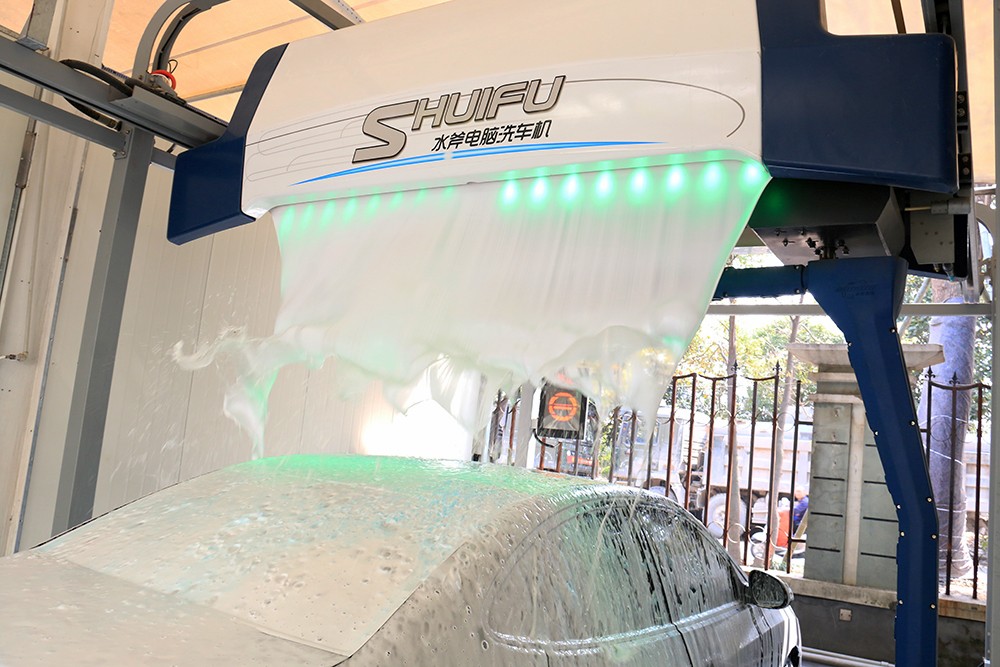

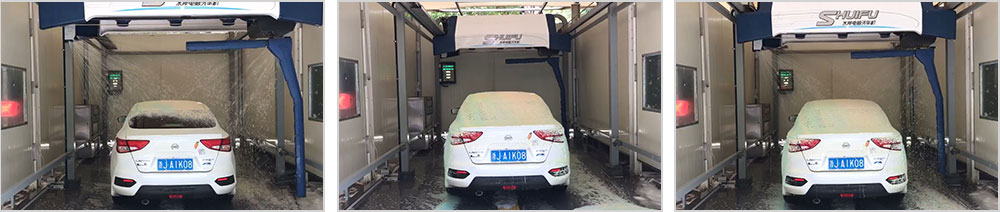

Tri-color foam spray

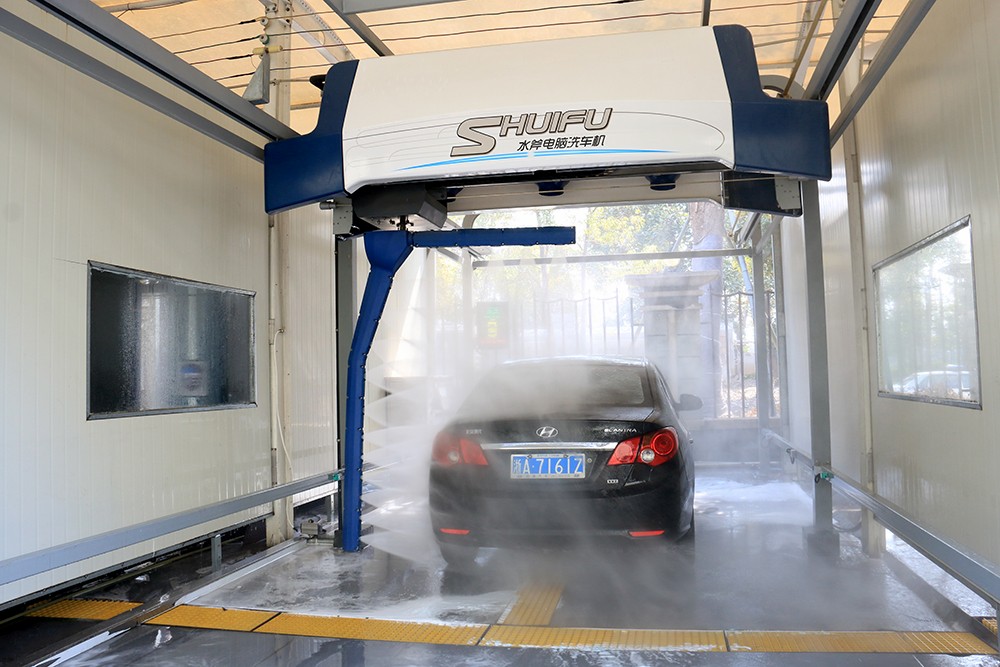

High pressure rinse
High pressure rinse
Germany Brand PINFL High Pressure Water Pump with 160Bar washing pressure. 304 stainless steel pump head.
AXE Touchless Car Wash Main Features
The newest AXE in-bay automatic car wash raises the standard for touchless car wash equipment. With Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360 Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to "think for itself", increasing up-time and optimizing the wash process.
Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.
Simplified engineering and high quality materials provide the optimal balance between initial investment and long-term profitability. Substantially faster wash speeds increase vehicle throughput, resulting in shorter wash lines that will delight your customers and keep them coming back again and again. Smart 360 technology enables AXE to be highly responsive to dynamic conditions in the wash bay, minimizing downtime and optimizing the wash process, resulting in higher customer satisfaction and repeat business.
Fully-automatic Computer Control Mode: AXE is equipped with advanced intelligent detection system: Built-in central processing unit. Without operator, this system washes cars automatically according to the selected wash packages. The system reminds customers automatically to leave the wash bay after finishing washing and guide the next customer to the wash bay. The whole wash process is controlled by computer to save labor cost and improve work efficiency.
Self-service Mode: Automatic Card Reader System makes 24hours self-service car wash possible. Customers can choose different single item and adjust the price of each item.
The cleaning power of AXE is raised to a new level with the addition of better vehicle chemical coverage with rounded arch corners, smart chemical timing and tilting arch functions. High pressure applications now include the ability to tilt to cover the back of side mirrors and arch oscillation to attack bugs from multiple angles. Combined with your ability to customize services and speeds in infinite combinations and to store favorite or seasonal packages - the cleaning system is a major step forward.
AXE Arch Control System allows for quicker throughput and creates customer confidence and comfort through the entire wash process. The arch is able to rotate 360 degrees while simultaneously moving around the vehicle. Three axis motions provide rounded corner profiling to produce consistent coverage by keeping the nozzles always focused on the vehicle. No more spraying on the floor! Arch control makes every second productive in the wash process - each corner time is reduced from 4 seconds to 1.5. The Smart 360 Arch Control also intelligently operates around the complete vehicle perimeter; monitoring and adjusting to conditions to keep attendant interaction low.

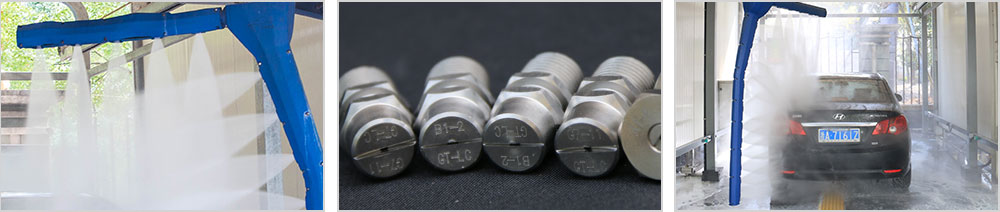

Spray Arm Materials: 304 stainless steel arm and good quality soft rubber cover without scratching car paint, L arm standard cover color is Blue.
The spray arm can adjust the washing distance automatically according to the size of car.
When vehicles enter the wash bay, LED sign and Voice System will guide customers to park vehicles in the right position. The system works out the best washing distance according to the detected date from the ultrasonic sensors.

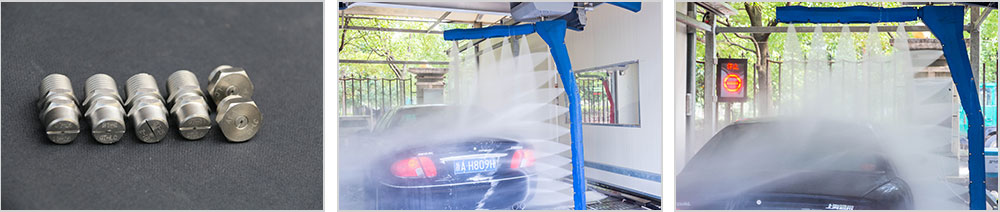

Spray Nozzle: The spray nozzles are designed according to the complicated hydrodynamics and produced by high precision CNC lathe. High hardness materials make sure that spray nozzles does not become deformed under high pressure.
Special Water Blaster Design: During high pressure rinse, spray nozzles can concentrate water flow to produce water knife. The upper and lower ectopic water knife structure makes sure that there is no offset pressure between the upper knife and side knife. 100bar high pressure water can wash every dirty car.
High Efficiency Shampoo: Multi-function spray nozzles can atomize all liquids to cover and clean every corner of vehicles.

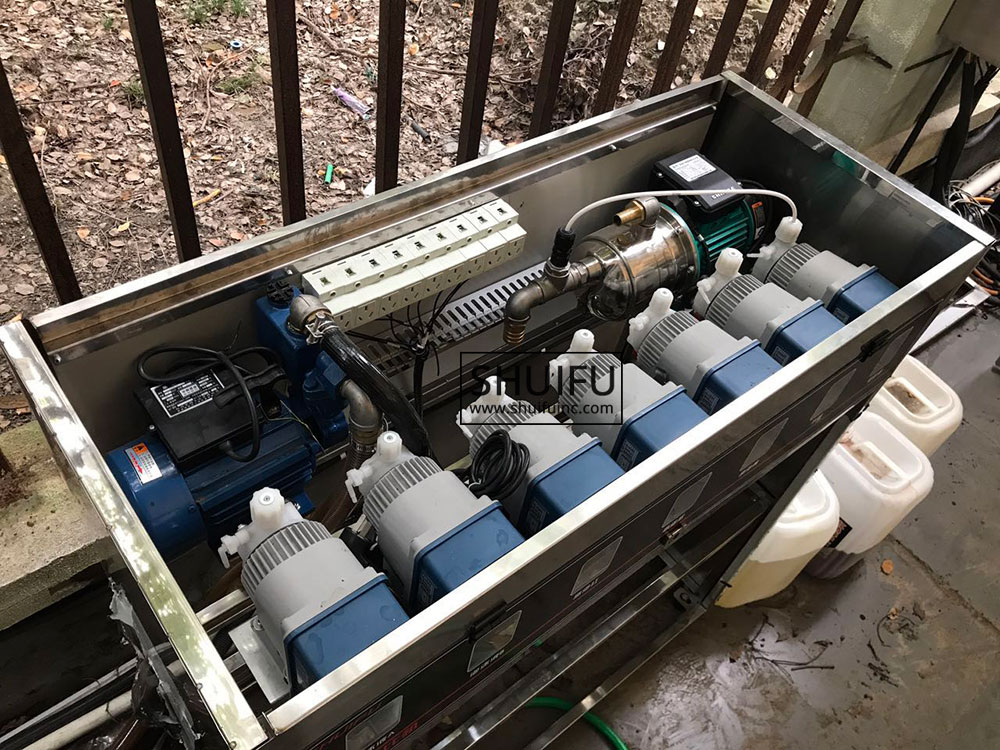

Automatic Dosing System-controlling 3color foam, shampoo and wax, 304stainless housing, digital display of liquids consumption, automatic dispensed,
Triple colors thick foam: the liquid flow is adjustable.
All detergents are adjustable.
100% Accurate measured by using accurate dispenser.
Wax softner rain for shining cars.
All chemicals are automatic dispensed according to the dirt style on car surface.
Fully-automatic Computer Control: Computer controls the mixing and atomization of all chemicals to produce micro particles for uniform covering vehicle surface and clean every corner of vehicles.
User-friendly Operation and Digital Liquids Matching Setting: Customers can adjust the liquid proportion according to the degree of dirt on vehicles.
High Efficiency: Fully-automatic micro control spray can save 1/5 chemicals than traditional spray.

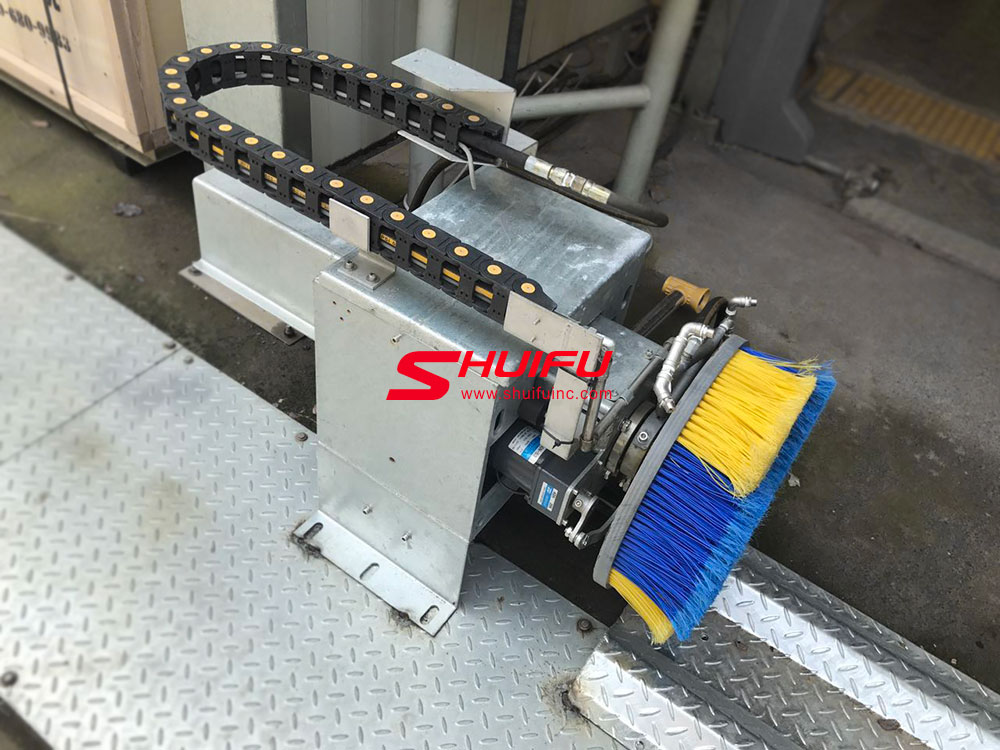

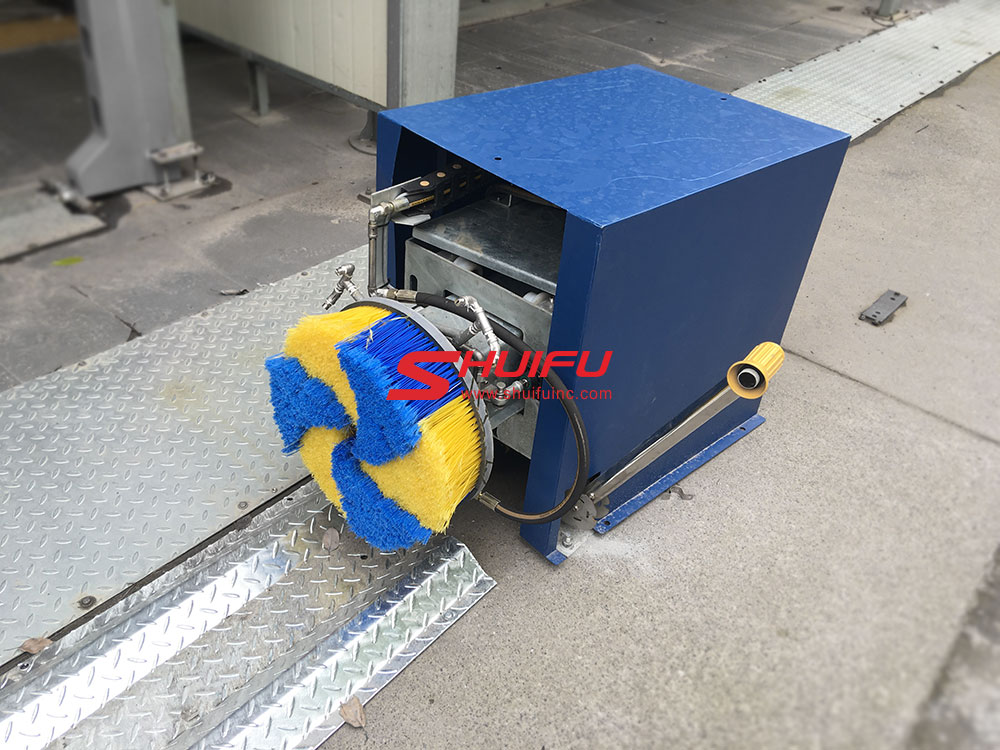

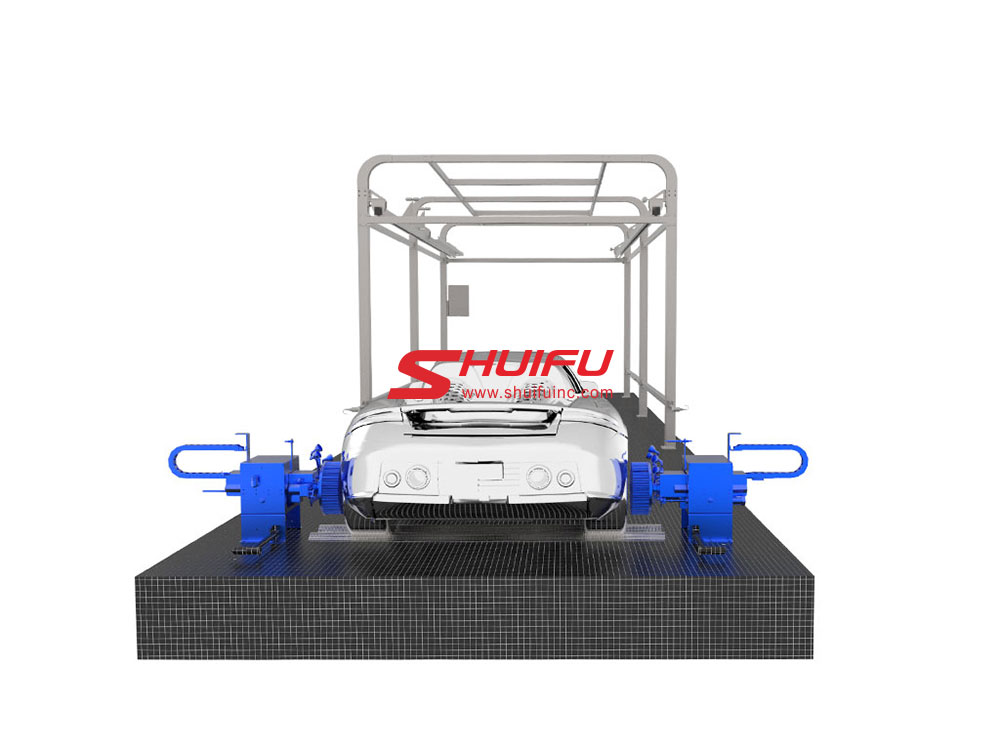

Wheel Brushes Enhances the Washing Result for Wheels, Tires, Fender, With HP(High-Pressure) Water Engaged By Stainless Steel Nozzles Surrounding The Round Brushes. When Brushes Rotating High-Pressure Water Comes to Rinse the Dirties, Can Absolutely Enhance The Wheel Washing. Check the Brushes Above There Are Different Thickness of Brushes Fabrics So To Penetrate Into Wheels To Wash Out The Heavy Dirties Inside Wheel.
Combined with variable frequency speed control and digital step driver, the micro resistance sliding rail makes the arm move more steady and fast, only 28seconds one circle for a 5meter length car.
Left or right mounted energy chain for easy and low-cost installation.
Bridge and trolley movements are controlled using slip-free drive belts for improved performance and wash accuracy. Less moving parts provide a much simpler drive system.

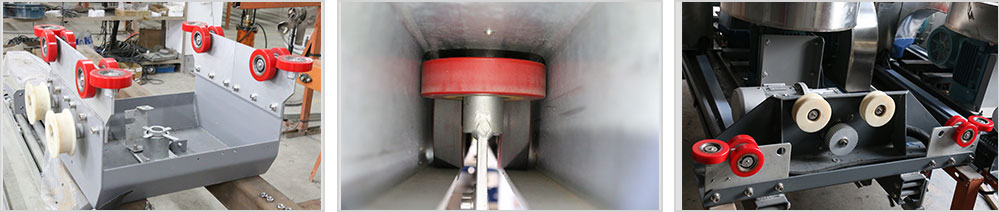

Bridge and trolley movements are smooth and effortless using internally mounted dual-axis rollers. The hanging design enhances self-centering and improved roller life by protecting the rollers from the harsh wash environment.
Built-in High Efficiency Dryers total 22KW, 4pieces blowers, each blower 5.5KW
AXE is equipped with 4pieces 5.5KW blowers, It takes only 80seconds to dry every corner of all vehicles. Improves dryer performance while still using less energy than most conventional dryers. This new system incorporates motion in the center two producers to help sweep water off of the vehicle’s top surface, allowing two outside producers to focus on pushing water down and off the sides of the vehicle.
The system is equipped with advanced position sensor, ultrasonic sensor and closed loop controller to detect location and size of vehicles. The detected digit signal is sent to central control unit to adjust the washing size automatically.
system guide customers to park vehicle in the right position. When the vehicle is out of washing area, the system will remind customer to park vehicle in the right position to continue washing.
During washing, the alarm system will sound the alarm and stop working when vehicle is out of washing area or there is something wrong with machine.
The system will start self checking and sound the alarm when there is something wrong with machine. The system can identify and record all errors to help operator solve problems.
The system can drain off liquids from all pipe lines when the temperature is below 0 degree Celsius.
New underground sensor for checking vehicles coming and controlling water spray automaticlly.
|Modal: AXE OVERHEAD|
|Overall dimensions (length, width,height): Machine shape: 3500mm * 1200mm * 900mm|
|Pump station dimensions (length, width,height): Pump station: 1200 mm* 810mm * 640mm|
|Dispenser size (length, width, height):Dispenser system: 1100mm * 471mm *1351mm|
|Maximum car size: 6000mm * 2200 * 2050|
|Installation dimensions (frame length): 7500mm ~ 8000 mm|
|Installation dimensions (frame width): 33500mm~ 3686mm|
|Installation dimensions (frame height): 3300-3400mm|
|Machine quality, volume: ≥3300 kg / ≥8.5 m³|
|Power requirements: 380V / 13Kw-380V /25Kw|
|air switch: 80A open|
|Total power: 13Kw / 24.5Kw|
|Pump motor power: 11Kw / 18.5Kw / pressure100bar|
|Fan motor power: 5.5kw / station * 4|
|Longitudinal motor power: 550wasynchronous frequency control|
|Transverse motor power: 1000w digitalservo drive motor|
|Rotating motor power: 1000w digital servodrive motor|
|Ratio motor power: 0.37kw|
|Central processor PLC: Industrialintelligent digital control system|
|Drive System: Promise frequencyconversion + digital servo drive|
|Intelligent two - dimensional three -dimensional detection system|
|Sensing system: Ultrasonic + absolutedigital encoder|
|Running speed: 360 per circle 27 seconds,energy saving 60%|
|Three-color curing (liquid): Depending onthe liquid dilution ratio (1-12L / H)|
|Clean car: Depending on the liquiddilution ratio (1-25L / H)|
|Molecular plating (liquid): Depending onthe liquid dilution ratio (1-12L / H)|
|Water Consumption: Custom, standard, finecare 65-200L|
|power consumption: Custom, standard, fineprotection 0.4-1 degrees|
|Self parking detection system: √|
|Digital Security Collision AvoidanceSystem: √|
|360 degree rotary flushing function: √|
|Chassis flushing function: √|
|Washing liquid: √|
|Three colors: √|
|Water wax rain system: √|
|Built-in automatic air dry system: √|
|LED prompts the boot system: √|
|Operation authority function: √|
|Credit card charging function: √|
|Tone system: √|
|Number of car wash statistics: √|
|Antifreeze system: √|
|No oiling system: √|
|Pressure equalization plugging nozzle: √|
|Safety alarm system: √|
|Automatic standby function: √|
|Osmosis Water Recycling System: √|
1Set Complete AXE Touchless Car Wash Package Details.
Machine Bridge Box: L*W*H=3685*1490*1335mm, 7.40CBM
Pump Statiion Box: L*W*H=1300*905*640mm, 0.76CBM
Chemical System Box: L*W*H=1190*640*1340mm, 1.03CBM

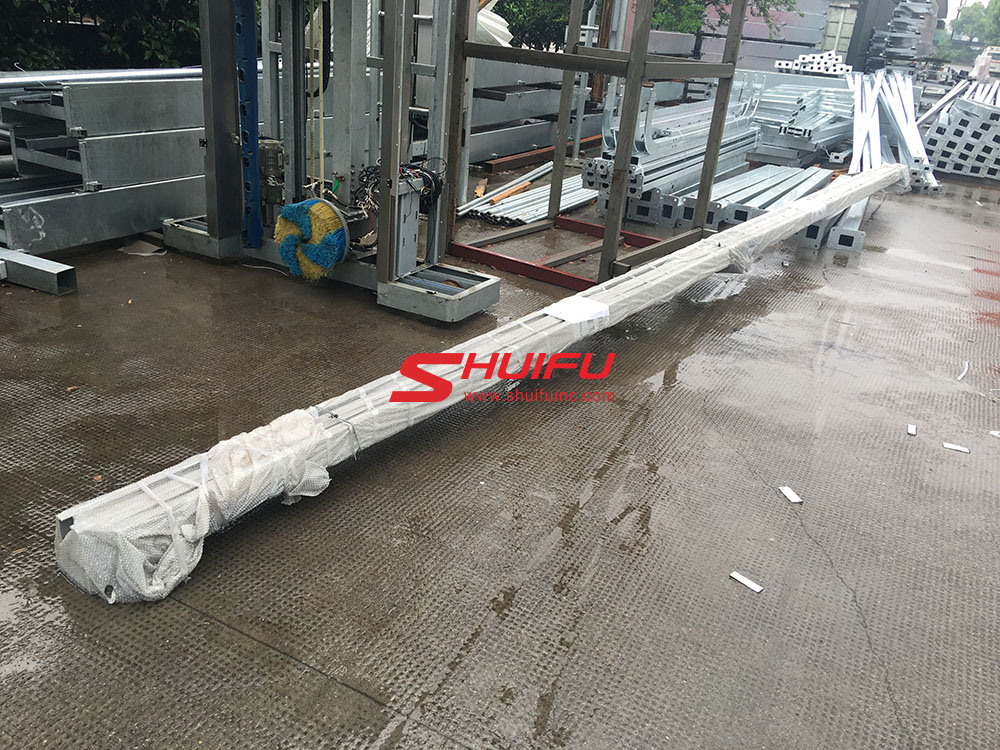

Rail Package: L*W*H=8000*430*230mm

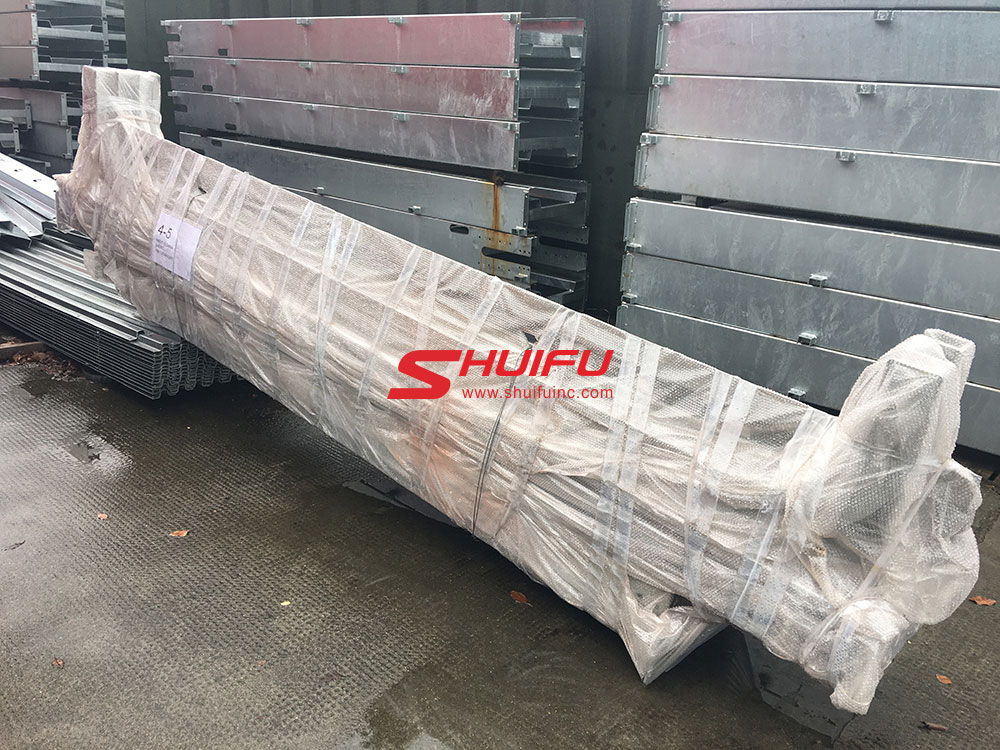

Steel Frame and Water Pipes Package: L*W*H=3940*1080*510mm, 2.18CBM.
Total G.W.=3000KGS, 12.17CBM
